Opticon OPR-2001 USB Handscanner Barcode Scanner Barcodeleser Slim 160cm
Zustand: gebraucht - refurbished und getestet
Zustand "sehr-gut": minimale Gebrauchsspuren, minimale Kratzer.
Zustand "gut": deutliche Gebrauchsspuren, leichte Kratzer.
Zustand "akzeptabel": starke Gebrauchsspuren, starke Kratzer, Surrgeräusch beim scannen möglich.

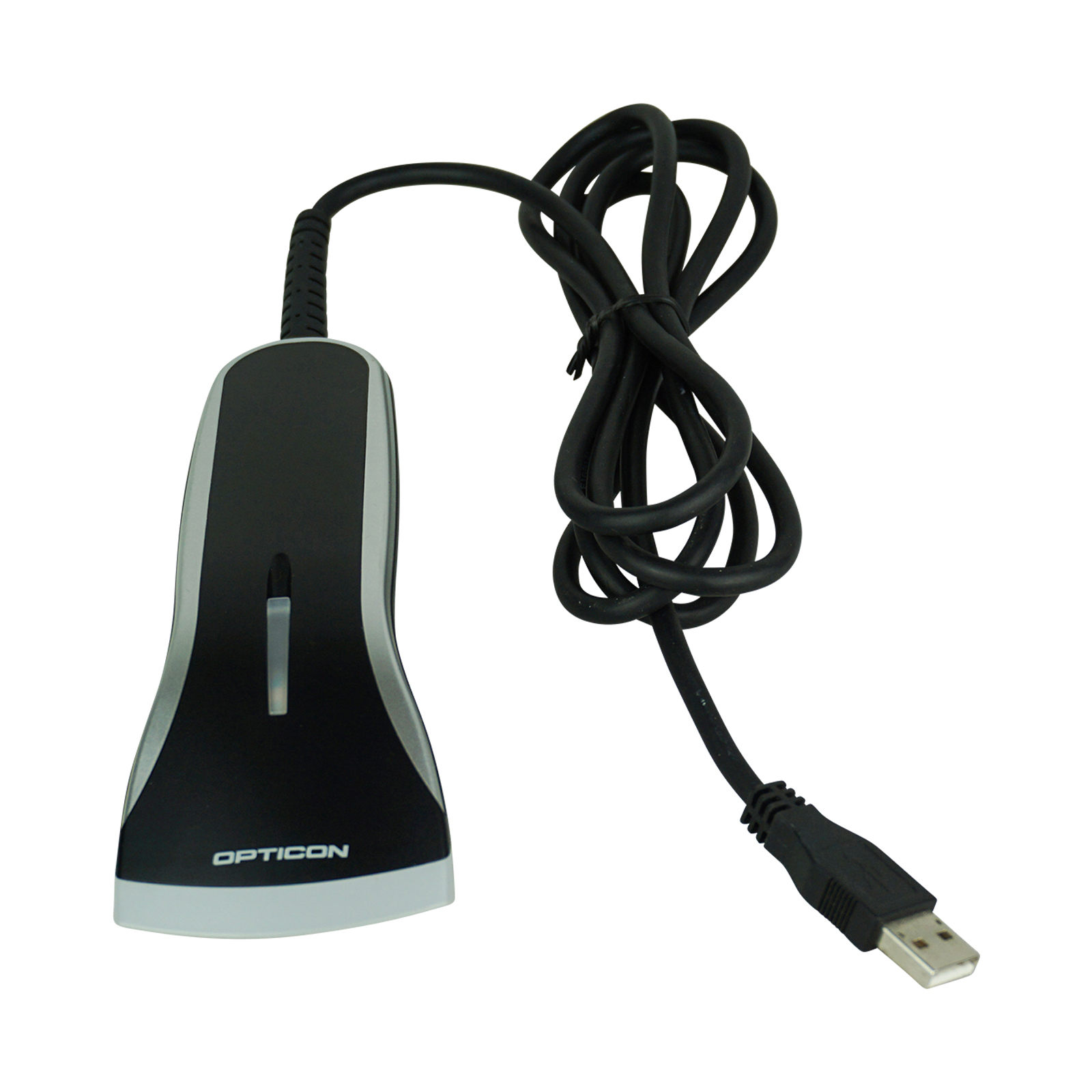

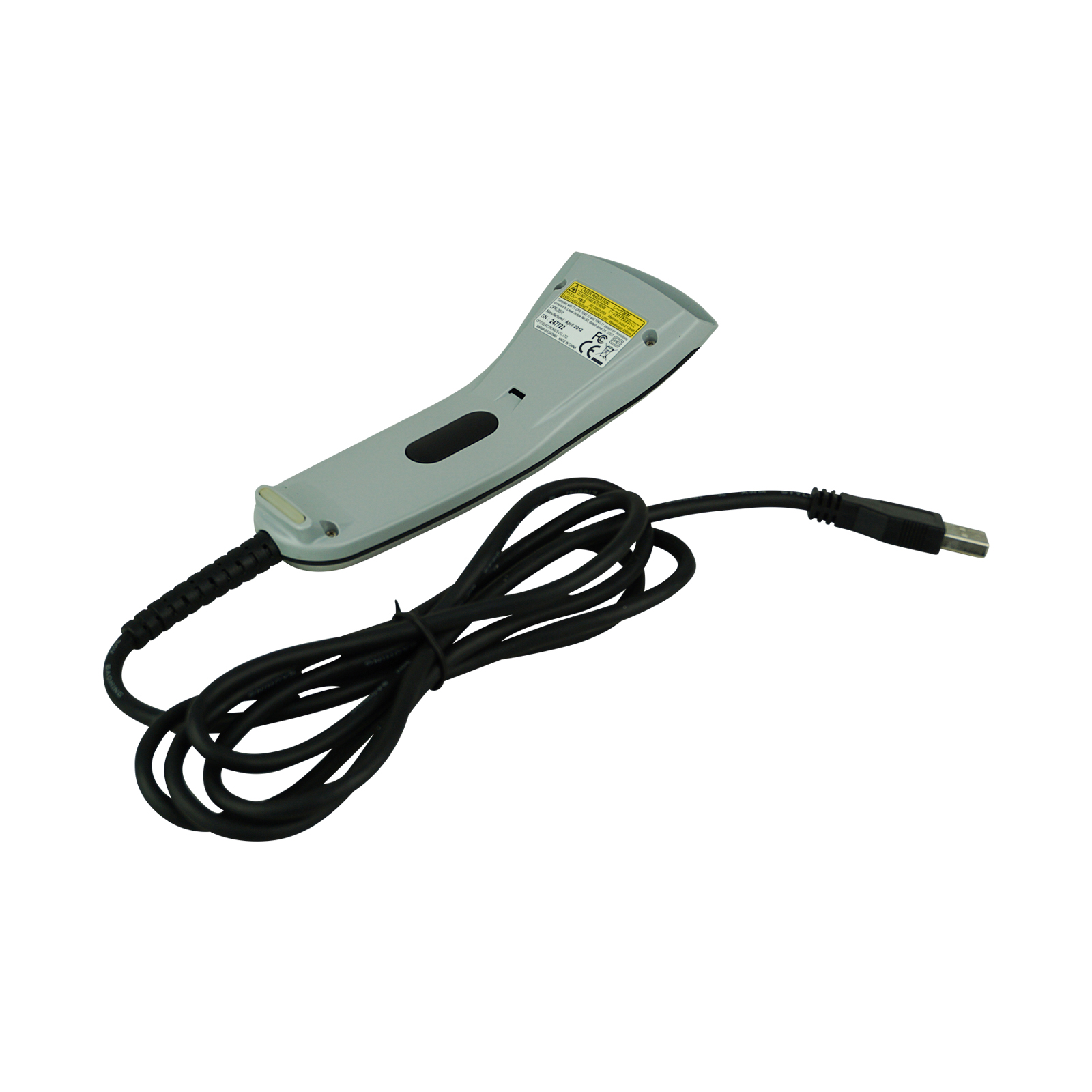

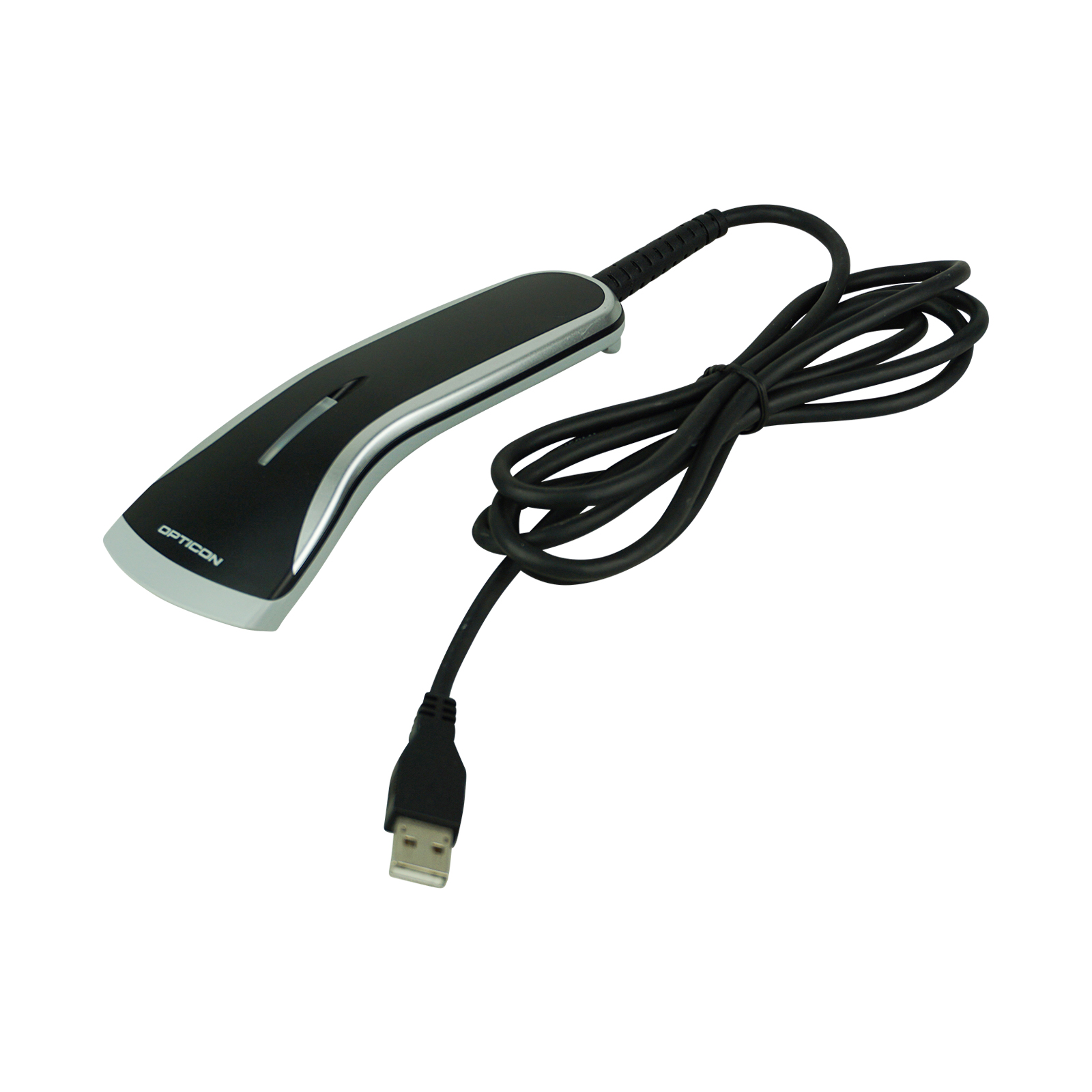

Slim and ultra-lightweight, this silver and black Opticon OPR-2001 handheld laser scanner is designed for retail applications. It delivers the perfect combination of performance, durability and style. The OPR-2001 feels good in the hand; it looks great on the counter and improves productivity. Featuring an aggressive 100 scans-per-second laser scanner, stand and a choice of interfaces USB, the OPR-2001 is at the top of its class. OPR-2001 product highlights include:
- Portable laser barcode scanner – 100 scans/second / cable 160cm
- Slim and ultra-lightweight scanner – 2.2”W x 5.9"L x 1.2”D in size and weighing only 2.1 ounces
- Communication: USB
- Features IP42 rating – sealed against dust and moisture
- Trigger modes: manual, auto-trigger, stand detection
Weitere Informationen finden Sie unter Technischen Daten!
Operating indicators:
• Visual: 1 LED (red/green/orange)
• Non-visual: Buzzer
Operating keys:
• Entry options:
1 scan key
Communication:
• RS232: DB9 PTF connector with external power
supply
• Keyboard Wedge: MiniDIN6 F/M connector
• USB: Ver. 1.1, HID/VCP, USB-A connector
Power:
• Voltage requirement: 5V ± 10% (Keyboard Wedge
and USB), 6V (min. 4.5, max. 6.5V)
• Current consumption: Max. 150mA
Barcode scanner Optics:
• Light source: 650 nm visible laser diode
• Scan method: Bi-directional scanning
• Scan rate: 100 scans/sec
• Trigger mode: Manual, auto-trigger, stand detection
• Reading pitch angle: -35 to 0°, 0 to +35°
• Reading skew angle: -50 to -8°, +8 to +50°
• Reading tilt angle: -20 to 0°, 0 to +20°
• Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
• Min. resolution at PCS 0.9: 0.127 mm / 5 mil
• Min. PCS value: 0.45
• Depth of field: At PCS 0.9, Code 39
40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil),
20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil),
20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil),
20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil),
30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil)
Supported Symbologies:
• Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/
NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128
(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,
Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/
Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
• Postal code: Chinese Post, Korean Postal Authority
code
• 2D code: Composite codes, MicroPDF417, PDF417
Durability:
• Temperature in operation: -5 to 50 °C / -23 to 122 °F
• Temperature in storage: -20 to 60 °C / -4 to 140 °F
• Humidity in operation: 20 - 85% (non-condensing)
• Humidity in storage: 10 - 90% (non-condensing)
• Ambient light immunity: Fluorescent 3,000 lx max,
Direct sun 50,000 lx max, Incandescent 3,000 lx
max
• Drop test: 1.5 m / 5 ft drop onto concrete surface
• Vibration test: 10 - 100 Hz with 2G for 1 hour
• Protection rate: IP 42
Physical:
• Dimensions (w x h x d):
56 x 151 x 31 mm / 2.20 x 5.94 x 1.22 in
• Weight body: Ca. 60 g / 2.1 oz (excl. cable)
• Case: ABS, Black,
• Cable: 160cm long
Regulatory & Safety:
• Product compliance: CE, FCC, VCCI, RoHS,
JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH
Class II
Sold separately:
• Power supply 100-240V/0.5A, 50/60 Hz, 6V/2A (for
RS232)
Models:
• Interface versions: RS232, Keyboard Wedge, USB
Art.-ID | 1405 |
Zustand | Gebraucht |
Varianten-ID | OPR-2001/gut#R |
Modell | OPR-2001 |
Hersteller | Opticon |
Inhalt | 1 Stück |
Bruttogewicht | 500 g |
Zolltarifnummer | 84719000 |
